We provide high-quality, high-precision PCB manufacturing services, from prototype design to mass production, meeting all your requirements.
值得信赖的合作伙伴
SHPCB is a professional PCB manufacturer with 15+ years of industry experience, dedicated to providing high-quality printed circuit board solutions to global customers.
By providing high-quality, high-reliability PCB products, we support global electronic industry innovation, create value for customers, and drive technological progress.
Adopting industry-leading production equipment and processes to ensure product quality and precision.
Full-process quality monitoring, certified by ISO9001, ISO14001 and other international certifications.
Efficient production management and supply chain, providing rapid prototyping and mass production services.
Experienced engineer team providing comprehensive technical support and solutions.
We offer various types of PCB products and services to meet the needs of different industries and applications.
Suitable for simple circuit designs, cost-effective, short production cycle, widely used in consumer electronics, home appliances and other fields.

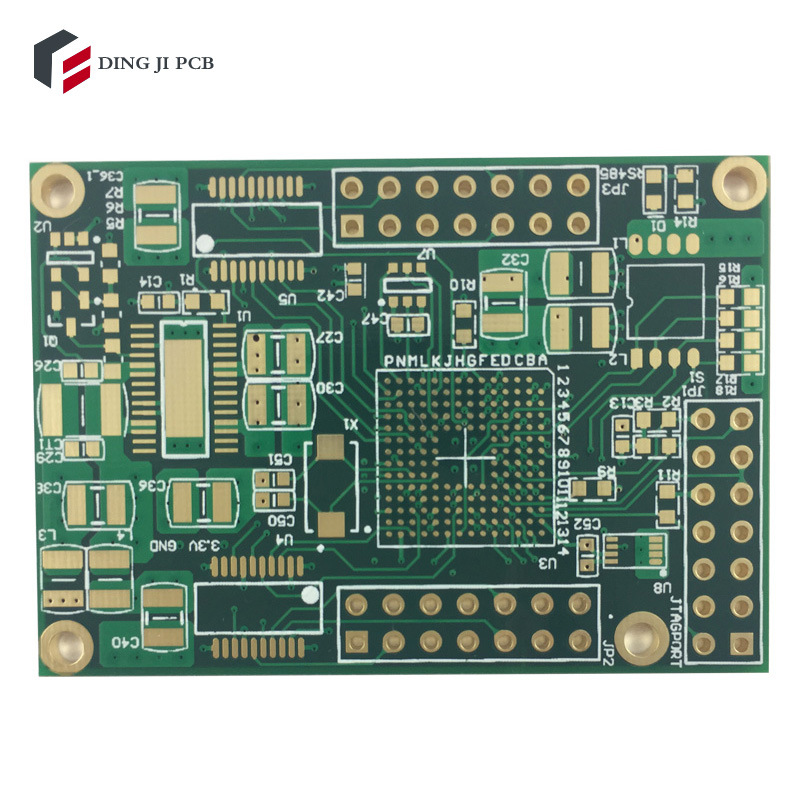

Suitable for complex circuit designs, providing better signal integrity and electromagnetic compatibility, widely used in communications, medical, aerospace and other fields.

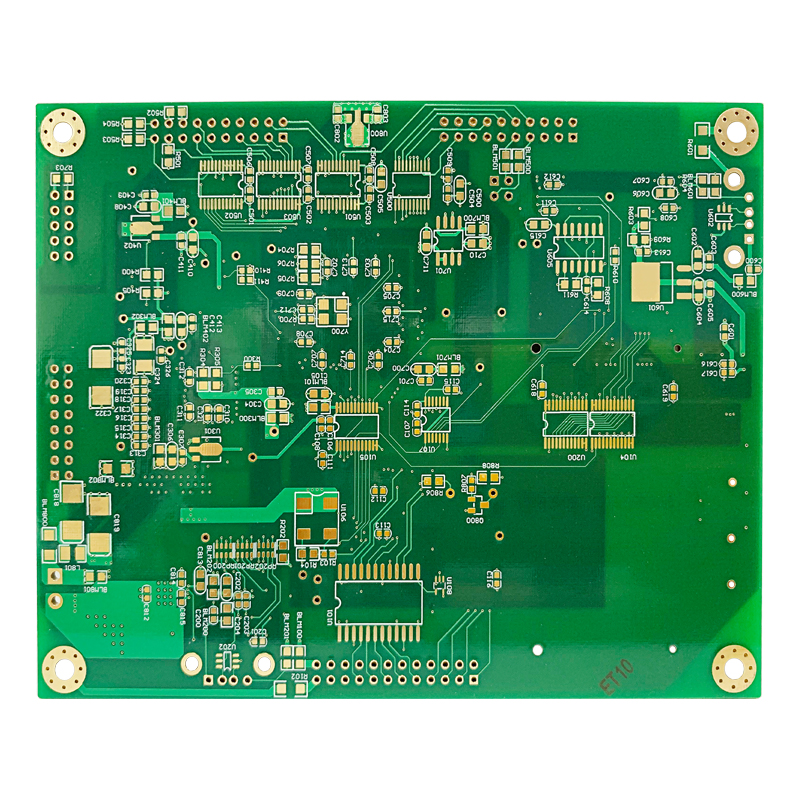

Using special high-frequency materials, with low loss and low dielectric constant characteristics, suitable for RF, microwave communications and other high-frequency applications.
Copper thickness up to 3oz or more, with good heat dissipation performance and high current carrying capacity, suitable for power supply, industrial control and other fields.
Using aluminum alloy as base material, with excellent heat dissipation performance, suitable for LED lighting, automotive electronics and other high-temperature environment applications.
High Density Interconnect PCB, using micro盲孔 and buried via technology to achieve high-density routing, suitable for smartphones, tablets and other small electronic devices.
We adopt advanced PCB manufacturing processes to ensure that every circuit board meets strict quality standards.
PCB design according to customer requirements, including circuit layout, impedance control, etc.
Fabricating inner layer circuits for multi-layer boards, including lamination, exposure, development, etching and other processes.
Stacking inner layer boards with prepreg, pressing into multi-layer boards through high temperature and pressure.
Using CNC drilling machines to drill holes, including through holes, blind holes and buried holes.
Through chemical copper deposition and electroplating, making hole walls conductive to achieve interlayer connection.
Fabricating outer layer circuits, including lamination, exposure, development, etching and other processes.
Applying solder mask ink, printing characters and marks.
Surface treatment according to customer requirements, such as HASL, ENIG, OSP, etc.
Cutting circuit boards into required shapes through CNC or punching machines.
Conducting electrical testing, visual inspection, etc. to ensure product quality.
根据客户需求进行PCB设计，包括线路布局、阻抗控制等。
制作多层板的内层线路，包括压膜、曝光、显影、蚀刻等工序。
将内层板与半固化片叠合，通过高温高压压制成多层板。
使用数控钻床钻孔，包括通孔、盲孔和埋孔。
通过化学沉铜和电镀铜，使孔壁导电，实现层间连接。
制作外层线路，包括压膜、曝光、显影、蚀刻等工序。
涂覆阻焊油墨，印刷字符和标记。
根据客户需求进行表面处理，如喷锡、沉金、OSP等。
通过CNC或冲床将电路板切割成所需形状。
进行电气测试、外观检查等，确保产品质量。

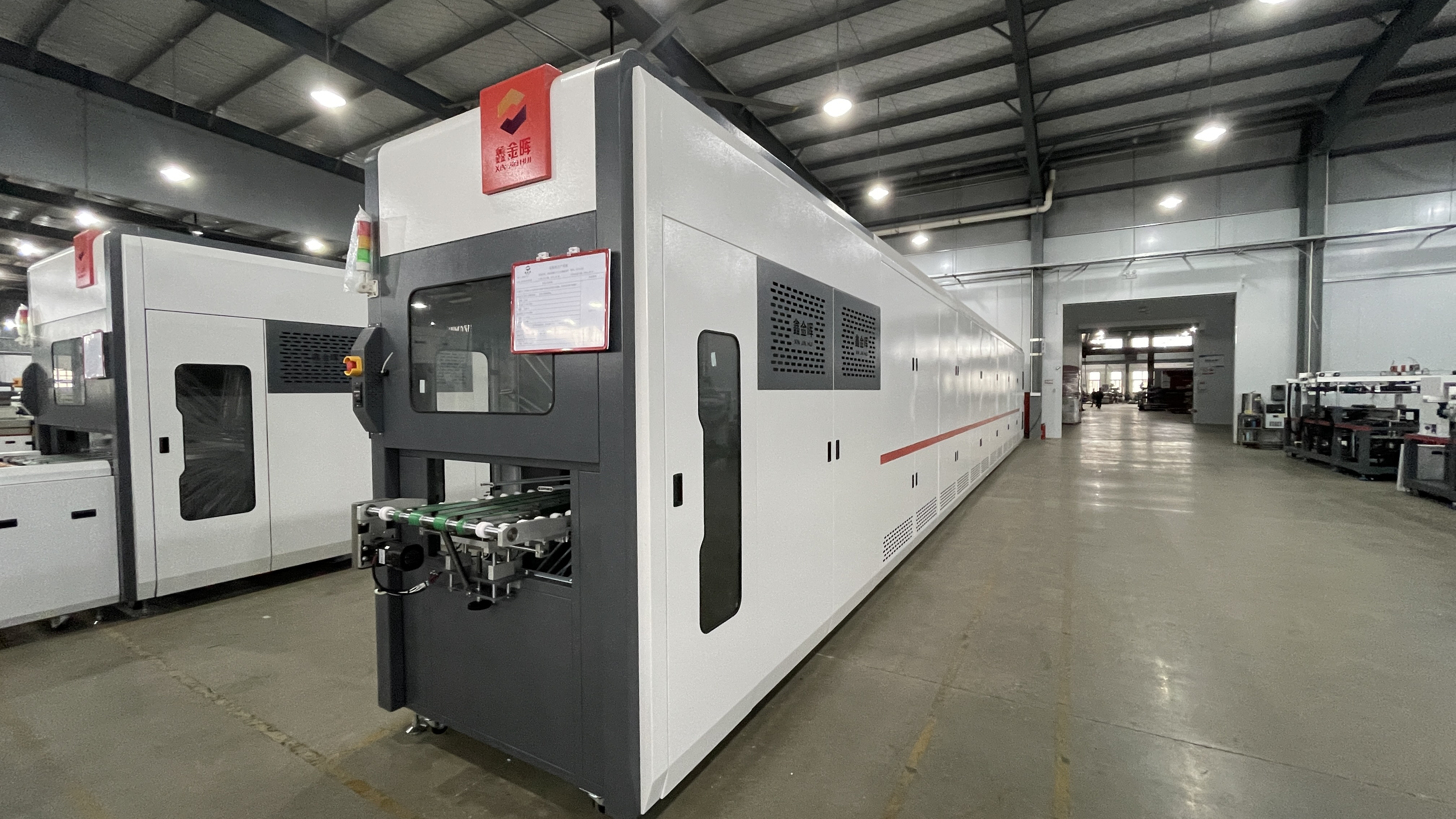

Introducing international leading PCB production equipment to ensure production precision and efficiency.

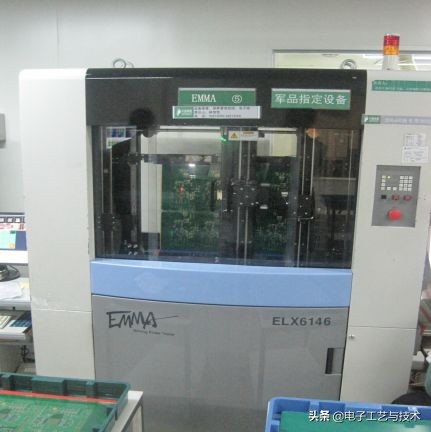

Equipped with high-precision testing equipment to ensure product quality meets strict standards.

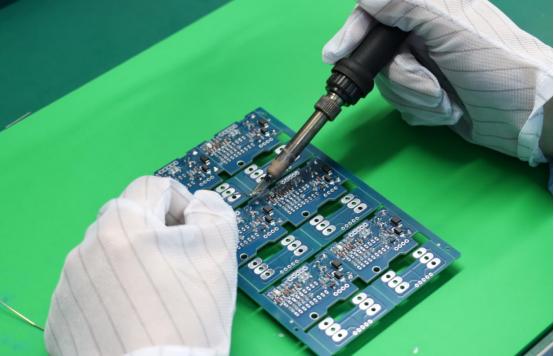

Full-process control to ensure each process meets quality requirements.
We have provided high-quality PCB solutions to customers in multiple industries. Here are some of our successful cases.
Provided high-density HDI PCB for a well-known smart watch brand, achieving miniaturized design and multi-function integration.
Provided high-frequency PCB for communication equipment manufacturers, supporting 5G signal transmission with low loss and high stability characteristics.
Provided high-reliability PCB for medical equipment manufacturers, complying with medical industry standards to ensure stable operation of equipment.
Provided high-reliability PCB for automotive manufacturers, suitable for engine control, body electronics and other systems.
Provided high-stability PCB for industrial equipment manufacturers, suitable for industrial automation, robot control and other fields.
Provided lightweight, high-reliability PCB for drone manufacturers, suitable for flight control, navigation systems, etc.
Submit your PCB requirements, and our professional team will contact you with a customized solution.
With 15+ years of experience in PCB manufacturing, we have the expertise to handle complex projects and provide professional solutions.
We use advanced manufacturing equipment and processes to ensure high quality, precision, and reliability of every PCB.
We offer quick prototyping and mass production services with efficient production management and supply chain.
Strict quality control system, ISO9001, ISO14001 certified, ensuring every PCB meets the highest standards.
Our professional technical team provides 24/7 support to answer your questions and solve your problems.
Call our sales team directly for urgent requirements or technical support.
+86 137 9830 5751If you have any questions or requirements, please feel free to contact us, and we will be happy to serve you.
